PLC HMI Integrated Programming Controller 44 Port Digital And 6 Port Analog PLC

  • PLC HMI Integrated Programming Controller 44 Port Digital And 6 Port Analog PLC
  • PLC HMI Integrated Programming Controller 44 Port Digital And 6 Port Analog PLC
  • PLC HMI Integrated Programming Controller 44 Port Digital And 6 Port Analog PLC
  • PLC HMI Integrated Programming Controller 44 Port Digital And 6 Port Analog PLC
Menşe yeri Çin
Marka adı Coolmay
Sertifika CE, RoHS
Model numarası QM3G-100FH-44MT-4AD2DA-A4-A4
Min sipariş miktarı 2
Fiyat US$169~599 per unit
Ambalaj bilgileri Standart karton kutu ile paketlenmiştir
Teslim süresi 3-5 iş günü
Ödeme koşulları T/T, Western Union
Yetenek temini Ayda 100.000 adet

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Türü Endüstriyel Makine Kontrolörü G/Ç 24DI/20DO, transistör çıkışları
Yüksek hız 100KHZ'lik 6 kanal İletişim Modbus rtu rs485
Analog G/Ç MS 4 ile 2 gün arası Yazılım GX Works2, Coolmay mView
Vurgulamak

PLC HMI Integrated Programming Controller

,

6 Port Analog Integrated HMI PLC

,

44 Port Digital Integrated HMI PLC
Mesaj bırakın
Ürün Açıklaması

PLC HMI Integrated Programming controller 44 port digital and 6 port analog plc



Coolmay PLC uses military-grade 32-bit chips, with nanosecond-level running speed andstrong anti-interference ability.Both input and output are adopted optocoupler isolation. Itintegrates analog input and output modules, and RS-485,RS-232 communication modules,which are a brand-new control concept in terms of function, cost and convenience.





Specifications



Model : QM3G-100FH-44MT-4AD2DA-A4-A4



Display Dimension 275*194*36mm
Cutout size 262*180mm
Power Consumption 6-8W
Feature 60K-color resistive touch screen, supports portrait display
Memory RAM 64MB
ROM NOR Flash 16MB
CPU 32bit CPU 408MHz
I/O DI/DO 24DI/20DO, transistor outputs
  AI 4 analog inputs 4-20mA
  AO 2 analog outputs 4-20mA
High-speed function High-speed counting

Single phase 6 channel 60KHz
High-speed pulse

8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.
Connection HMI Type-B HMI download port (can download PLC program through the USB penetrating function), RS232
PLC 1 Mini USB, 1 RS232 (program port), 1 RS485
Software HMI Coolmay mView HMI Programming Software
PLC Compatible with Mitsubishi GX WORKS 2



Dimension

Cut-out size: 262*180mm

PLC HMI Integrated Programming Controller 44 Port Digital And 6 Port Analog PLC 0

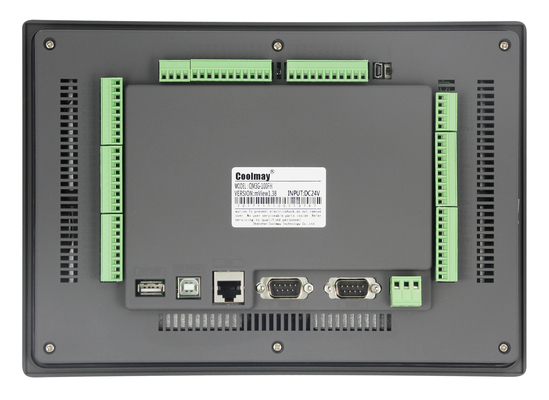

Wiring



PLC HMI Integrated Programming Controller 44 Port Digital And 6 Port Analog PLC 1
